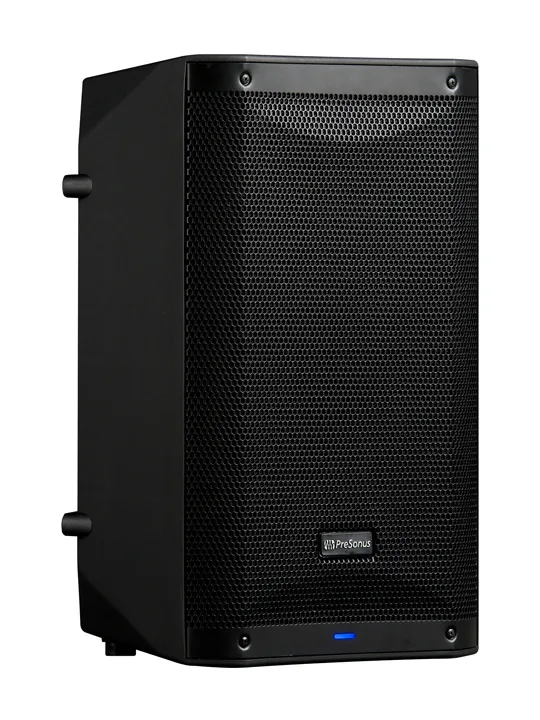

The AIR10’s multi-angle enclosure sports nonskid rubber feet on the bottom for upright front-of-house use and on one side for stage monitor applications. Rig it using M10 fly points or ground-stack for portable applications. Mount it on a tripod or atop an AIR-series subwoofer using an optional sub pole. An integrated dual-position pole mount lets you aim the speaker level or at a 7.5˚ downward tilt. And the AIR10 is easy to transport, thanks to its top-mounted handle.
With its pro features and audio quality, the AIR10 is a great choice for mobile and installed sound.
Features
- 1-inch, high-frequency compression driver and 10-inch woofer with a 2-inch voice coil
- 900W (peak) Class D power amplifier for LF driver and 300W (peak) Class A/B amplifier for HF driver
- Maximum SPL 121 dB peak with 66 Hz to 20 kHz frequency response
- 90° x 60° (horizontal x vertical) dispersion pattern
- Onboard mixer with two combo XLR and ¼-inch inputs and one summed balanced output
- Easy-to-use DSP performance presets: DJ (music playback), FOH (normal front-of-house), Monitor (floor wedge), Speech (intelligibility)
- Additional presets and controls: Stand (pole or tripod mounting), Bracket (wall mounting), Suspend (flown applications)
- Rugged, plastic, multi-angle enclosure for mains or monitor-wedge applications, with comfortable ergonomic handle and tour-grade, 1.2 mm steel grille
- 35 mm pole socket with 7.5˚ downward tilt
- M10 rigging points for suspended installation
Highlights & Specs
Multiple Inputs For A Variety Of Sources

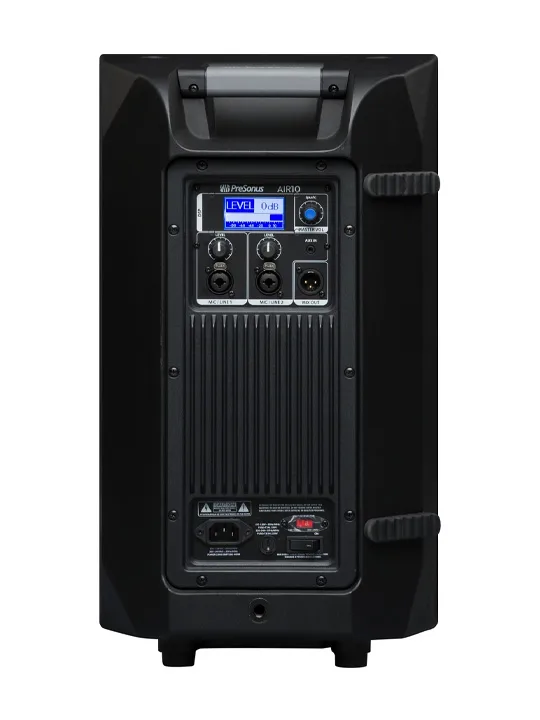

AIR full-range loudspeakers feature two combo XLR mic/TRS line inputs, each with a Class A mic preamp and independent gain control. A stereo ⅛-inch connection admits signals from consumer audio devices. These signals can be combined with the internal mixer, and a balanced XLR Mix output lets you pass the signals to other AIR-series loudspeakers.
