Specifications

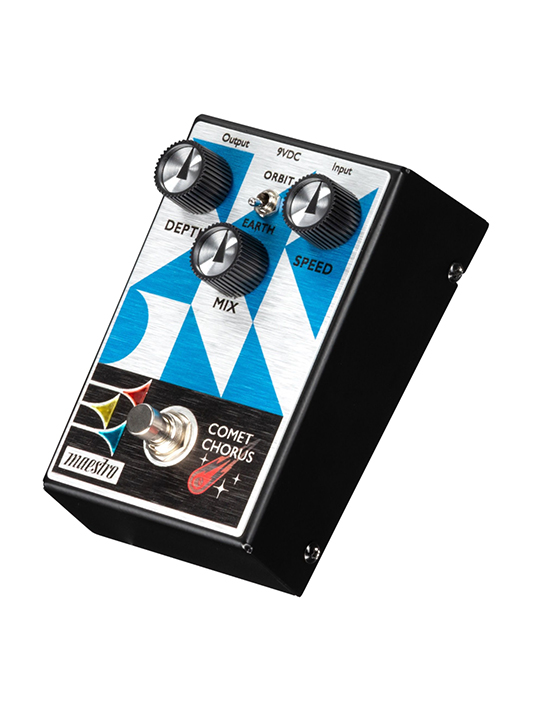

Name : Maestro Comet Chorus
Switches : True Bypass footswitch, Orbit/Earth Mode toggle switch
Led Indicators : Red, yellow, and blue bugles in the Maestro logo illuminate when the pedal is active
Signal Processing : All-Analog
Power Requirements : 9V battery or regulated 9VDC power supply (5.5 x 2.1 mm plug, wired center-negative)
Current Draw : 55.4 mA
Power On Switch : Incorporated into the input jack. Unplug the input when not in use to prevent battery drain. Remove the battery when the pedal is going to be stored for long periods to prevent leakage and damage.
Input Impedance : 470 kOhms
Output Impedance : 1 kOhms
Switching Type : True Bypass
Dimensions : 5.04″ x 3.45″ x 2.5″ (128.0 mm x 87.6 mm x 63.5 mm)
Weight : Net: 1.25 lb. (567.0 gm.) Gross: 1.61 lb. (730.3 gm.)
Internal Trim Pot : The internal trim pot labeled Orbit allows the user to adjust the amount of the rotary speaker-style effect that is blended into the sound when the Mode switch is in the Orbit position. Using a small screwdriver, turn clockwise to increase, counterclockwise to decrease the amount of the Orbit effect.
