BOLT-ON QUARTERSAWN MAPLE NECK WITH EDDIE VAN HALEN’S MODIFIED “C” BACKSHAPE
Bolt-on is a type of neck construction that joins the maple neck to the body of the guitar with screws or bolts, resulting in bright tone with more control. The quartersawn grain runs the length of the neck and as well as being visually appealing, is less susceptible to shrinking, warping or splitting. Graphite-reinforcement rods flank the truss rod for even more increased neck stability, while your fretting hand will feel right at home on the modified “C”-shape neck, which has a .790” thickness at the 3rd fret and .825” at the 12th fret.
12″-16″ COMPOUND RADIUS MAPLE FINGERBOARD
The innovative 12″-16″ compound radius maple fingerboard design gradually flattens toward the heel from its smaller and more rounded profile at the nut for unparalleled comfortable chording and riffing near the nut and seamless bending near the heel. Maple is a dense wood that produces bright, snappy tones, articulate notes with bite and a tight low end.
EDDIE’S FAMED FRANKENSTEIN PICKUP MODS
To throw imitators off his scent, Eddie faked people out by hacking into his original Frankenstein guitar and screwing a three-way switch sideways into the middle position and housing a non-functional single coil pickup in the neck position. The Frankie guitar follows suit, featuring an EVH Wolfgang humbucking bridge pickup with a dummy Strat neck pickup and a dummy five-way blade housed in the middle position. The direct mount EVH Wolfgang bridge humbucker with Alnico 2 magnets is hotter and delivers rich harmonics, cutting highs and snarling mids.
UNIQUE COSMETICS & APPOINTMENTS
Other standout appointments of this fan favorite include a reliced red with white-and-black-striped paint job, reliced hardware, custom black pickguard, top-mount Strat-style output jack and white skirted Strat-style single volume control knob labeled “Tone.”

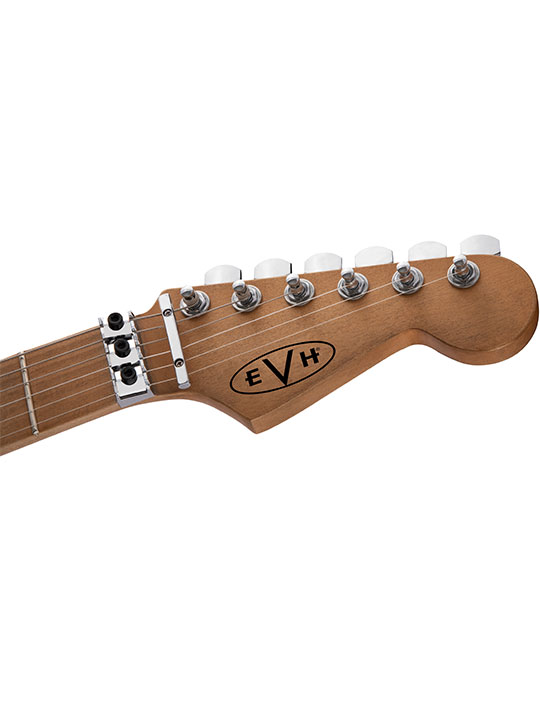

EVH-BRANDED FLOYD ROSE LOCKING TREM, R3 LOCKING NUT AND EVH D-TUNA
Eddie Van Halen was the first player to popularize the innovative Floyd Rose locking tremolo, even advising Floyd Rose on his early designs to integrate round disc finger-type tuners that you would see on a cello or violin. Now universally embraced, our EVH-branded Floyd Rose bridge features our EVH logo stamped on the bridge plate, steel saddles and a solid brass block. The Floyd Rose bridge and R3 (43 mm) locking nut is a professional-grade double-locking design that secures the strings in the saddle and nut, providing ultimate tuning stability and dynamic tremolo action. Standard equipment on Eddie’s personal guitars since the early ‘90s, the EVH D-Tuna is a unique patented device that enables players to drop the E to D and back, in an instant.
| EVH Striped Series Frankie | |
| Color : Red with Black Stripes Relic | |
| Body: | Basswood, Satin Urethane Finish |
| Neck: | Quartersawn Maple, Maple Fingerboard, |
| EVH® Modified “C” Backshape Neck Shape | |
| 12″ -16″ Compound Radius, Oiled Neck Finish | |
| Frets: | 22 Jumbo |
| Pickups: | Dummy Strat® Pickup (Neck) |
| Direct Mount EVH® Wolfgang® Humbucking | |
| (Bridge) | |
| Controls: | Volume |
| Hardware: | EVH®-Branded Floyd Rose® Locking- |
| Tremolo with EVH® D-Tuna® Bridge, | |

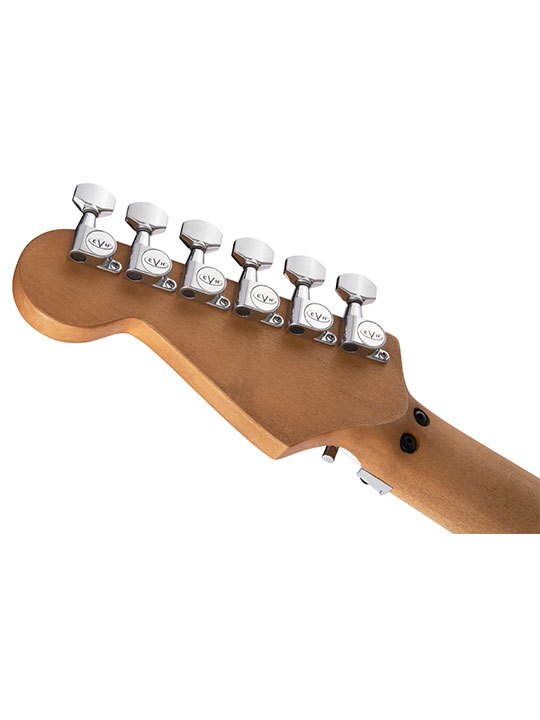

| EVH®-Branded Gotoh Tuning Machines, | |
| Black Custom Frankie Pickguard, Chrome | |
| Relic | |
| Case: | N/A |
