Features
- Two products in one: audio interface and production controller
- 24-bit/192 kHz audio interface with 2 mic/instrument/line inputs with XMAX mic preamps, 2 balanced ¼-inch TRS main outputs, headphone output with independent level control
- Complete recording-transport controls: Play, Stop, Fast Forward, Rewind, Record, Loop, Drop Marker, Next/Prev Marker, Next/Prev Event
- General session controls: Undo/Redo, Arm All, Solo/Mute Clear, Click On/Off
- Session Navigator provides quick control over Track Scrolling, Timeline Scrolling, and much more
- Channel Controls: Level, Pan, Solo, Mute, Rec Arm
- Automation Controls: Touch, Latch, Trim, Write, Read, Off
- macOS®- / Windows®-compatible with native Studio One® support and HUI and Mackie Control Universal emulation
- Footswitch input for hands-free start/stop (footswitch not included)
- Studio One Artist included
- Ableton Live Lite included
- Studio Magic software suite included
Built For Studio One
The optimized PreSonus® Studio One® mode will revolutionize your workflow. Use the Session Navigator to move and nudge events in the Arranger window quickly. The unique Link function allows you to instantly control any parameter beneath your mouse with the large encoder. Control link lets you customize your function buttons and much more.
Ableton Live Integration.
While compatible with most third-party software, FaderPort offers deeper integration with Ableton Live (version 10.1.5 and later). Navigate clips and scenes, change track volume and panning, and switch between Session and Arranger views — the FaderPort will help you work faster than ever.
Superior Sound
Two of PreSonus®’ acclaimed XMAX Class A analog microphone preamps deliver incredibly high headroom and a rich overall sound. High-quality converters provide 115 dB of dynamic range to capture complex musical harmonics smoothly and naturally. The result is clear, consistent audio that makes mixing easier and creating a polished sound faster.
Your Studio Assistant.

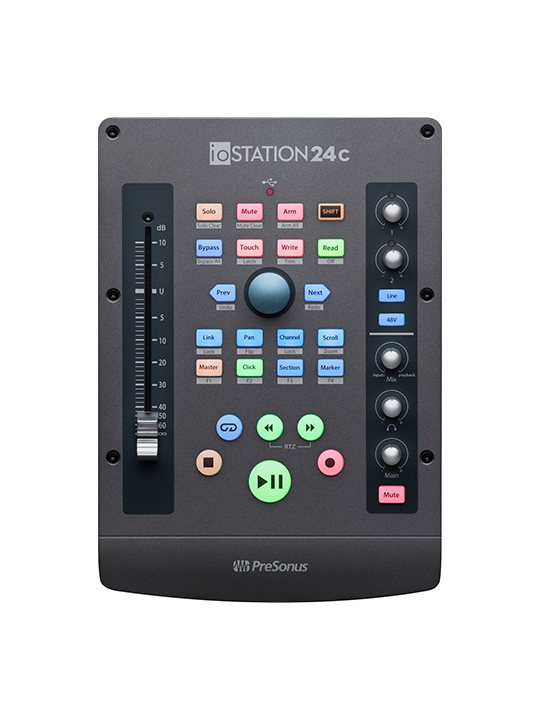

The ioStation 24c’s unique Session Navigator is your caffeine-fueled assistant engineer, providing easy access to eight mission-critical functions for maximum flexibility. Navigate and drop markers and maintain constant control of your main level. Once you start using the Session Navigator, you’ll wonder how you mixed without it.
Electronics
-

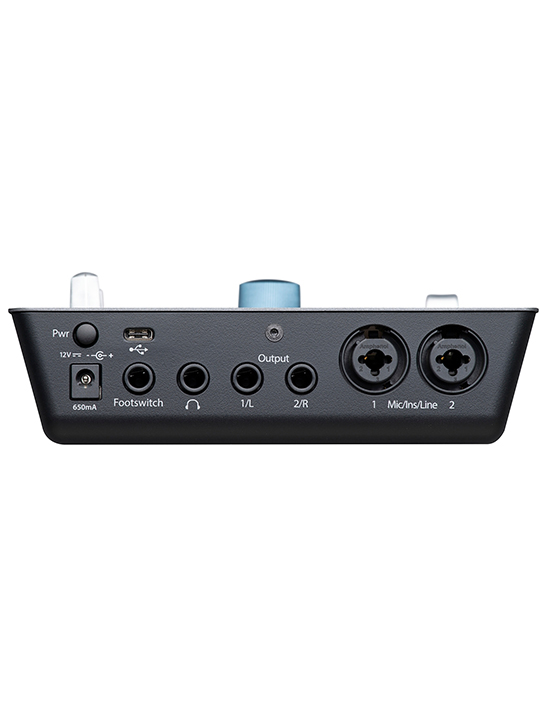

Inputs : Two – Combo Mic/Instrument/Line Inputs (XLR Female Balanced, 1/4″ TS Female Unbalanced (Inst) or TRS Female Balance (Line))
-
Jack : 1/4” TRS Female, Stereo, Unbalanced
Miscellaneous
-
Connection Type : 12 VDC, 1.2A, External Power Supply
Microphone Preamp
-
Total Harmonic Distortion : < 0.007% (1 kHz, Minimum Gain)
-
Gain Control Range : 80 dB
-
Maximum Input Level : +16 dBu (Balanced, Minimum Gain)
-
Phantom Power : +48V, > 8 mA Per Input
-
Frequency Response : 20 Hz to 20 kHz (±0.15 dB, Unity Gain, 48 kHz)
-
Input Impedance : 1.6 kΩ
-
Dynamic Range : > 107 dB (A-Weighted, Minimum Gain)
-
Equivalent Input Noise : < -128 dBu (Maximum Gain, 40Ω, 22 kHz BW, A-Weighted)
Line Inputs
-
Maximum Level : + 22 dBu (Balanced, Minimum Gain)
-
Line Inputs Gain Range : 80 dB
-
Line Inputs Frequency Response : 20 Hz to 20 kHz (±0.05 dB, Unity Gain, 48 kHz)
-
Line Inputs Dynamic Range : > 114 dB (A-Weighted, Minimum Gain)
-
Line Inputs Total Harmonic Distortion : < 0.007% (1 kHz, -1 dBFS, Minimum Gain)
-
Line Inputs Impedance : 10 kΩ
Main And Line Outputs
-
Main And Line Outputs Maximum Level : +18 dBu (Balanced)
-
Main And Line Outputs Frequency Response : 20 Hz to 20 kHz (±0.2 dB, Unity Gain, 48 kHz)
-
Main And Line Outputs Total Harmonic Distortion : < 0.005% (1 kHz, +4 dBu)
-
Main And Line Outputs Dynamic Range : > 109 dB (A-Weighted)
Headphone Outputs
-
Maximum Output : 150 mW/Channel (56Ω Load)
-
Frequency Response : 20 Hz to 20 kHz (±0.2 dB, 56Ω Load, 48 kHz)
-
Dynamic Range : > 107 dB (A-Weighted)
-
Total Harmonic Distortion : < 0.02% (1 kHz, -1 dBFS, No Load)
-
Impedance Working Range : 32Ω to 300Ω
Digital Audio
-
Dynamic Range : ADC Dynamic Range (A-Weighted): 115 dB, DAC Dynamic Range (A-Weighted): 115 dB
-
Bit Depth : 24 Bit
-
Supported Sample Rates : 44.1, 48, 88.2, 96, 176.4, 192 kHz
