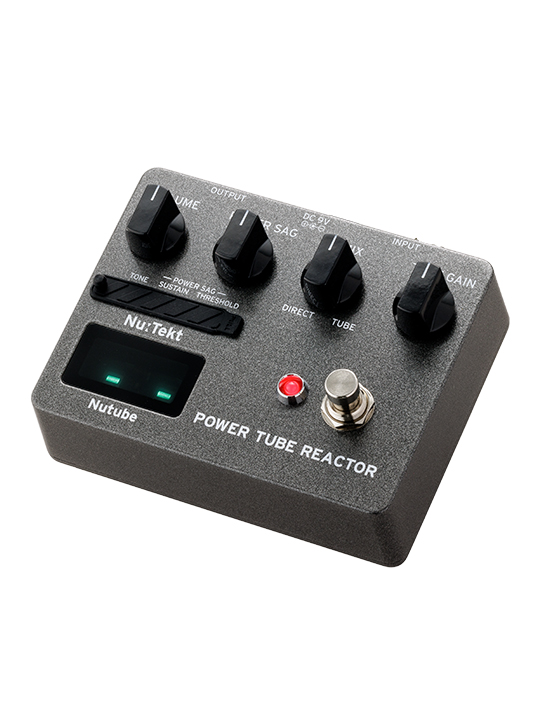

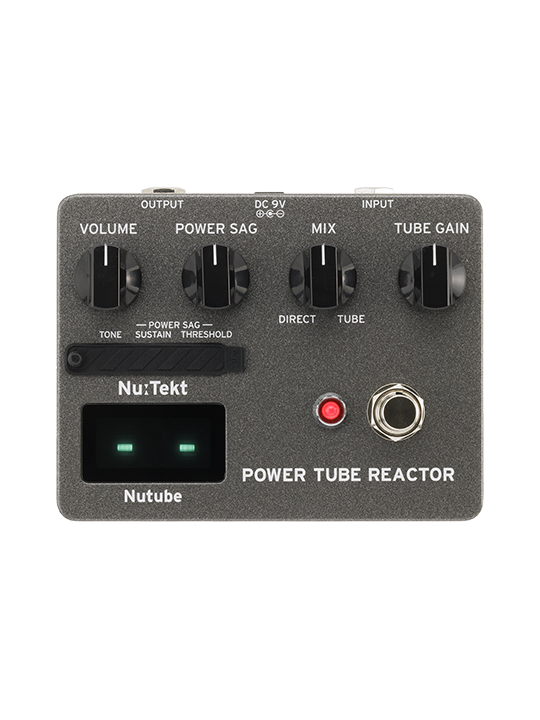

Recreate the behavior and sag of a vacuum tube power amp with the Nutube
This unit features a patent-pending circuit design that drives the compression for the vacuum tube itself, only possible with the Nutube. Use the Nutube to recreate sag (the compression feeling), a behavior of vacuum tube power amps that can be used in a variety of situations such as when you’re playing through a transistor amp or recording on a desktop music setup. The TR-S includes three trimmer knobs inside the top cover of the housing, in addition to the four knobs on the panel, which brings you even closer to the sound you want. The TR-S also achieves a natural-sounding compression effect with other instruments besides guitar.
Can be assembled easily in the same way as a plastic model kit
Can be assembled easily in the same way as a plastic model kit, with no soldering required. All necessary tools are included. A circuit diagram is provided in the included Owner’s Manual. The Nutube driven TR-S is ideal for you if you love self-assembled effects units with incredible performance and sound quality and will help you create your own distinct sound.
Specifications
- Vacuum Tubes : Nutube.6P1.
- Connecting terminals : INPUT terminal (monaural phone jack), OUTPUT terminal(monaural phone jack), DC.9V terminal.
- Power : 9V alkaline batteries (6LF22/6LR61) or DC.9V AC adapter (Both sold separately.)
- Battery Lifetime : Approx. 5 hrs. (When using alkaline batteries)
- Power Consumption : 85mA
- External dimensions (W x D x H) : 122×96×55mm
- Weight : 340g (Battery not included)
- Included items : Owner’s manual, Tool&Pick
- Accessories : AC adapter (DC.9V)
