CRYSTAL CLEANS AND BLISTERING BITE

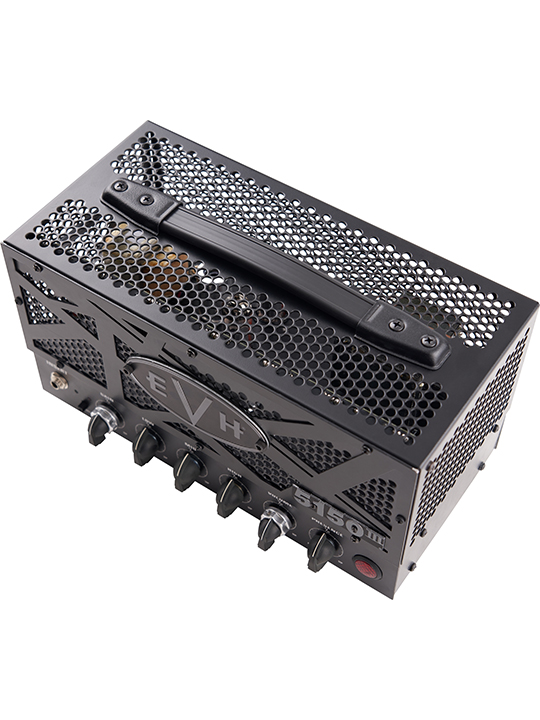

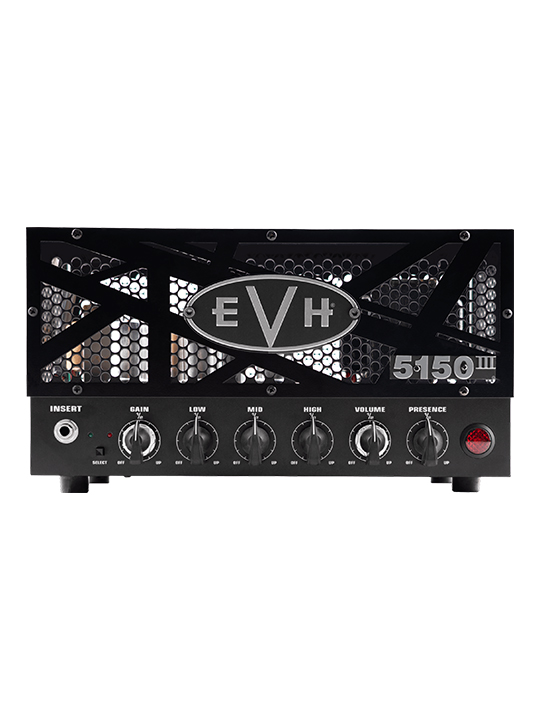

This pint-sized, easily-portable head packs Eddie’s legendary tone and attitude with two distinct channels. The Green channel sings with pristine and sparkling cleans or even punchy gain for bluesy vibes, while the Red channel revs things up with modern liquid gain and scorching overdriven tone that’s ideal for blistering leads.
LIGHT IT UP
Added style points come in the form of an LED backlight, which illuminates the cage in either green or red to match the selected channel.
CRANK IT!
Bedroom players can utilize the 1/4-power switch to reduce the head to 3.5 watts and avoid disturbing the rest of the household, while studio and live musicians can leverage this same feature to turn up the head for a squeezed and spongy tone.

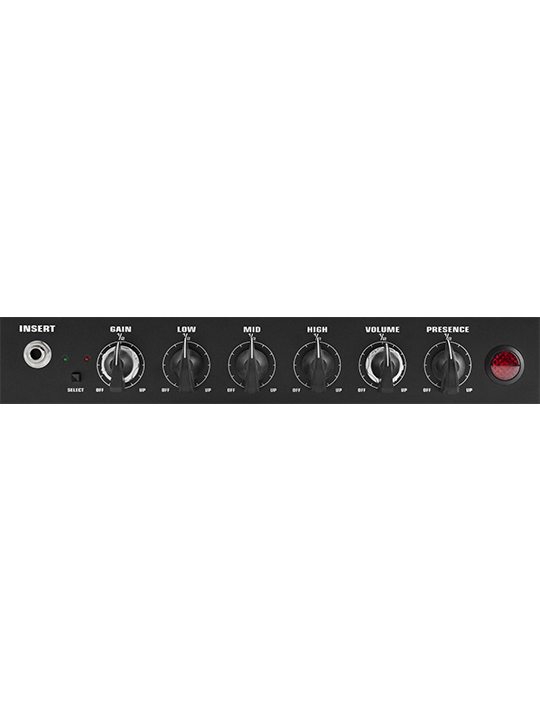

The LBX-S also has dual gain and volume controls for independent control of each channel and level matching, as well as shared EQ presence and resonance controls.
SOUND ON THE GO
Four JJ ECC83S (12AX7) preamp tubes up the ante with plenty of saturated, high-gain tone synonymous with Van Halen’s high-powered sound when pushed to the brink. Two JJ EL84 power tubes produce Eddie’s tonal attitude with a modern twist, delivering distinguished harmonics similar to early British-style tube amps.
TAP OF THE FOOT
Toggling from the Clean (Ch. 1) to Full Burn (Ch. 2) is just a mere tap of your foot away with the 1-button footswitch.
SPECS
GENERAL
Model Number | 2256020000 |
---|---|
Series | EVH® 5150III® Heads |
Color | Stealth Black |
Amplifier Type | Tube |
Height | 7″ (17.8 cm) |
Width | 12.5″ (31.2 cm) |
Depth | 6″ (15.3 cm) |
Weight | 15 lbs (6.80 kg) |
ELECTRONICS
Controls | Dual Gain, Low, Mid, High, Dual Volume, Presence, Resonance |
---|---|
Channels | Two: (Green) Clean/(Red) Full Burn |
Voltage | 120V (Also Available in 100V, 110V, 220V, 230V, 240V) |
Wattage | 15 Watts |

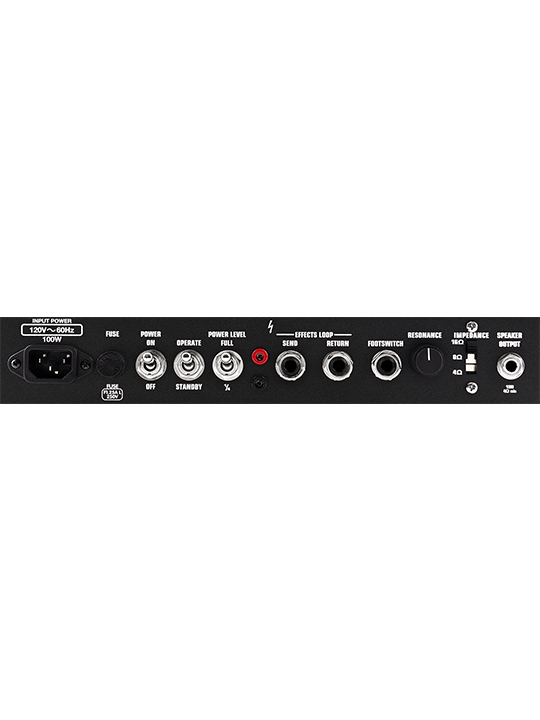

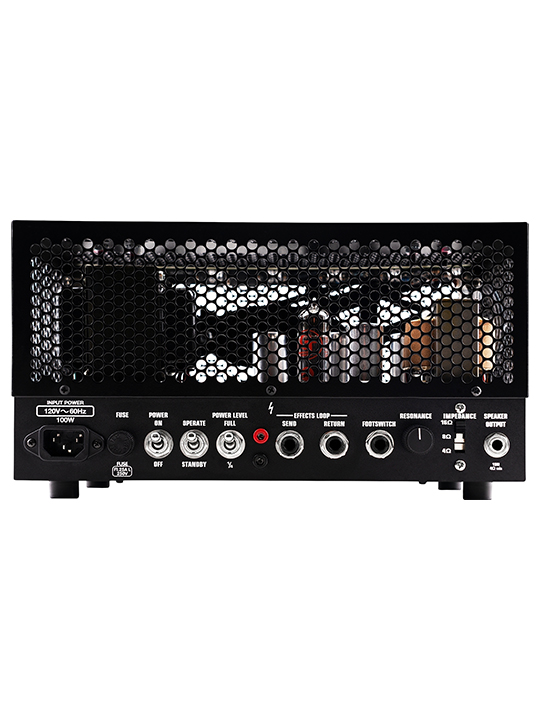

Effects Loop | 1/4″ (Send/Return) |
Inputs | One – 1/4″ |
Other Connections | Adjustable Bias Control Ports |
Speaker Jack | Two – 1/4″ Parallel |
Rectifier | Solid State |
Total Impedance | 4, 8, or 16 ohms |
Power Cable | IEC |
CONSTRUCTION
Grill Cloth/Material | Black Metal |
---|---|
Amplifier Covering | Black |
Cabinet Material | Aluminum/Steel Chassis |
TUBES
Preamp Tubes | 4 x JJ ECC83S (12AX7) |
---|---|
Power Tubes | 2 x JJ EL84 |
HARDWARE
Control Knobs | Black Chicken-Head Style Pointer |
---|---|
Handle | Vinyl with Metal Insert and Black End Caps |
Front Panel | Black |
MISCELLANEOUS
Other Features | LED Backlight (Green/Red) – On/Off Selectable |
---|
ACCESSORIES
Footswitch | 1-Button Footswitch Included |
---|---|
Recommended Cover | Optional P/N 0221600006 |
